The overall shape is smooth and natural, interpreting the essence of minimalism. Seeking a balance of life essence between dynamic and static is also a combination of rich functional needs. The functionality is fully upgraded, and everything hidden behind it is the persistent pursuit of details and quality. The streamlined appearance design is derived from Fuxing. A perfect fusion of technology, function and aesthetics.
Germany exquisite craft, professional production level.
Professional testing, nano titanium hinge through the SGS168-hour salt spray test standard, super corrosion resistance.
Pass the European standard 50,000 opening and closing tests, quality certification, long service life.

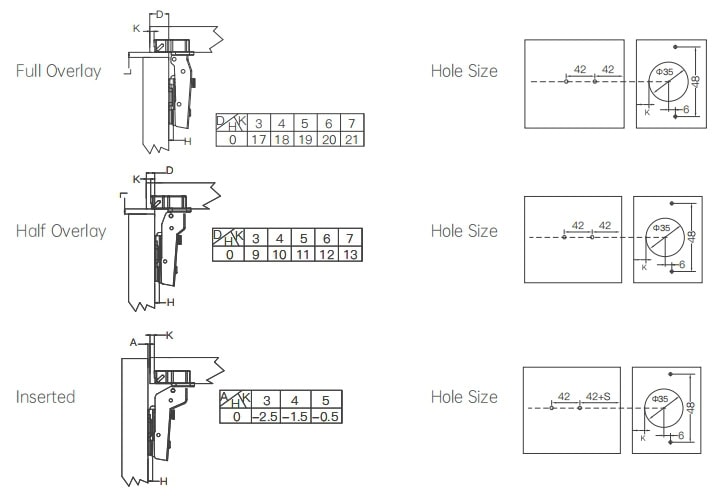

| Description | Item No. | Overlay | Base Plate Height / Holes | Head Cup Size (Diameter × Depth) | Opening Angle | Surface Treatment | |
|---|---|---|---|---|---|---|---|
| With steel cover | Without steel cover | ||||||
| Wingless hinge | 8152061 | 8152081 | Full Overlay | H=0, 2 Holes | φ35×11.5mm | 100° | Titanium plated |
| 8152062 | 8152082 | Half Overlay | H=0, 2 Holes | φ35×11.5mm | 100° | ||
| 8152063 | 8152083 | Inserted | H=0, 2 Holes | φ35×11.5mm | 100° | ||
| Wingless hinge | 8152091 | 8152001 | Full Overlay | H=0, 2 Holes | φ35×11.5mm | 100° | Nickel electroplating |
| 8152092 | 8152002 | Half Overlay | H=0, 2 Holes | φ35×11.5mm | 100° | ||
| 8152093 | 8152003 | Inserted | H=0, 2 Holes | φ35×11.5mm | 100° | ||
| ABS arm cover | / | 8152025A | / | / | / | / | Bordeaux red |
| / | 8152025B | / | / | / | / | Champagne gold | |
| / | 8152025C | / | / | / | / | Highclass grey |
Explore premium modular kitchen & wardrobe accessories at irresistible prices. Act fast — buy now or contact our dealer to grab this exclusive limited-time offer!
Contact Dealer Now!
