Push and pull smoothly, with gentle cushioning. Without affecting the overall aesthetics, it ensures the smooth opening and closing of the sliding of the drawer. The hidden bottom support desian shows wisdom in invisibility, adding a sense of neatness and beauty to the furniture.
Germany exquisite craft, professional production level.
Professional testing, nano titanium hinge through the SGS168-hour salt spray test standard, super corrosion resistance.
Pass the European standard 50,000 opening and closing tests, quality certification, long service life.

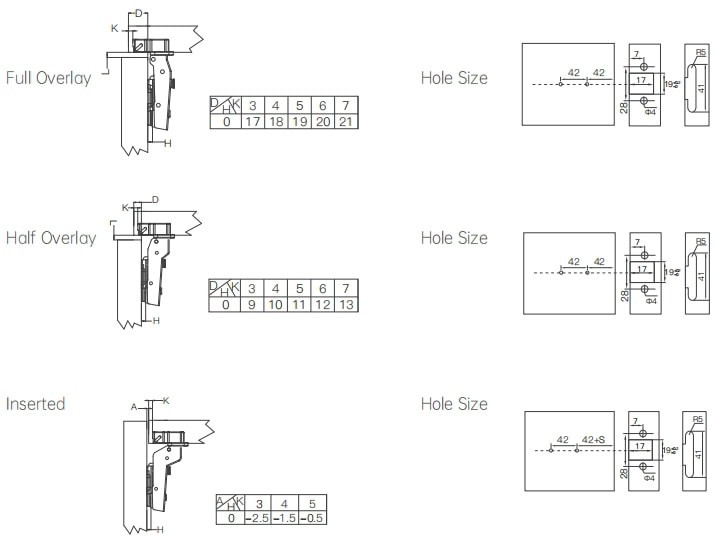

| Description | Item No. | Overlay | Base Plate Height / Holes | Hole Size | Opening Angle | Surface Treatment |
|---|---|---|---|---|---|---|

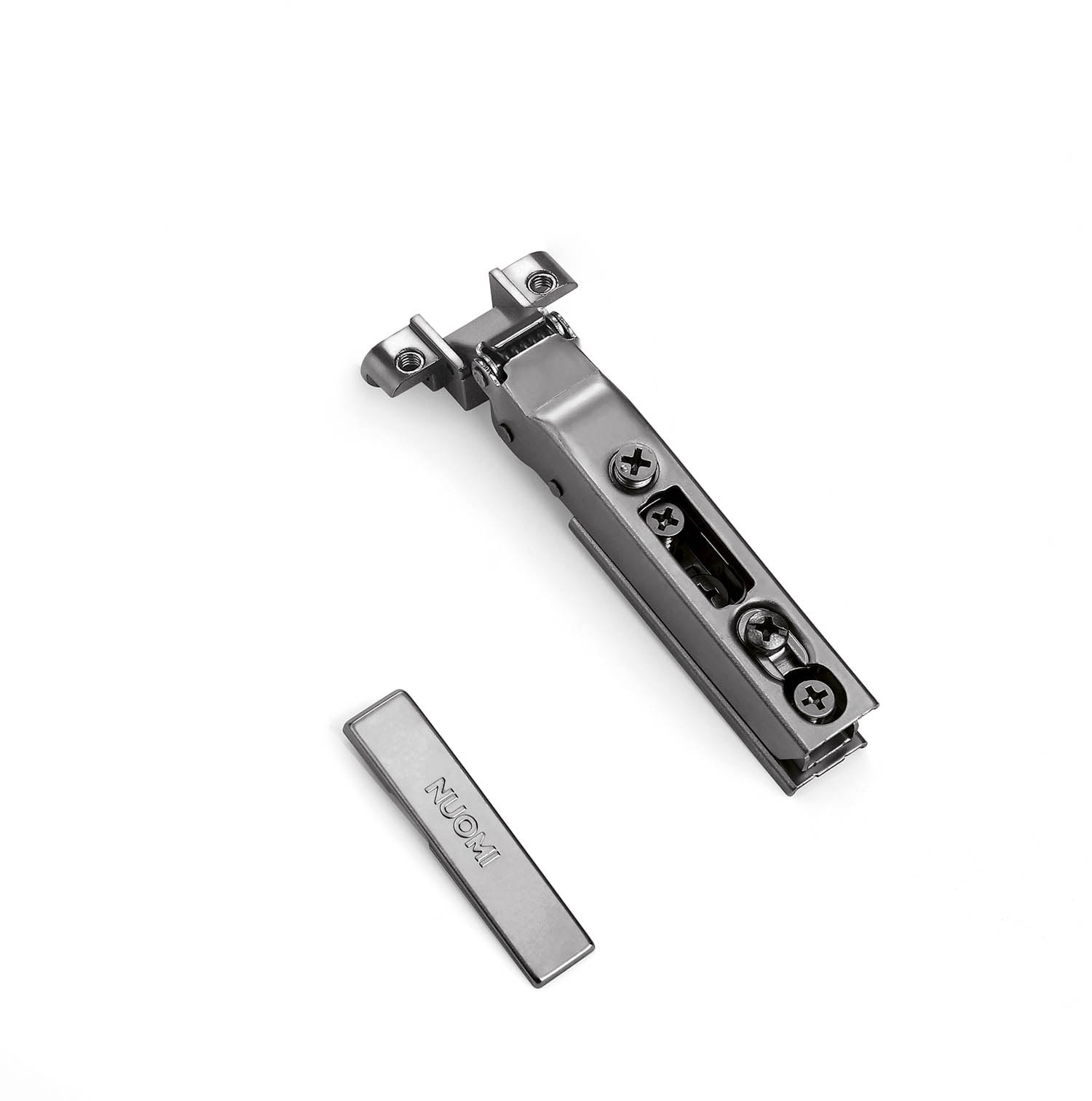

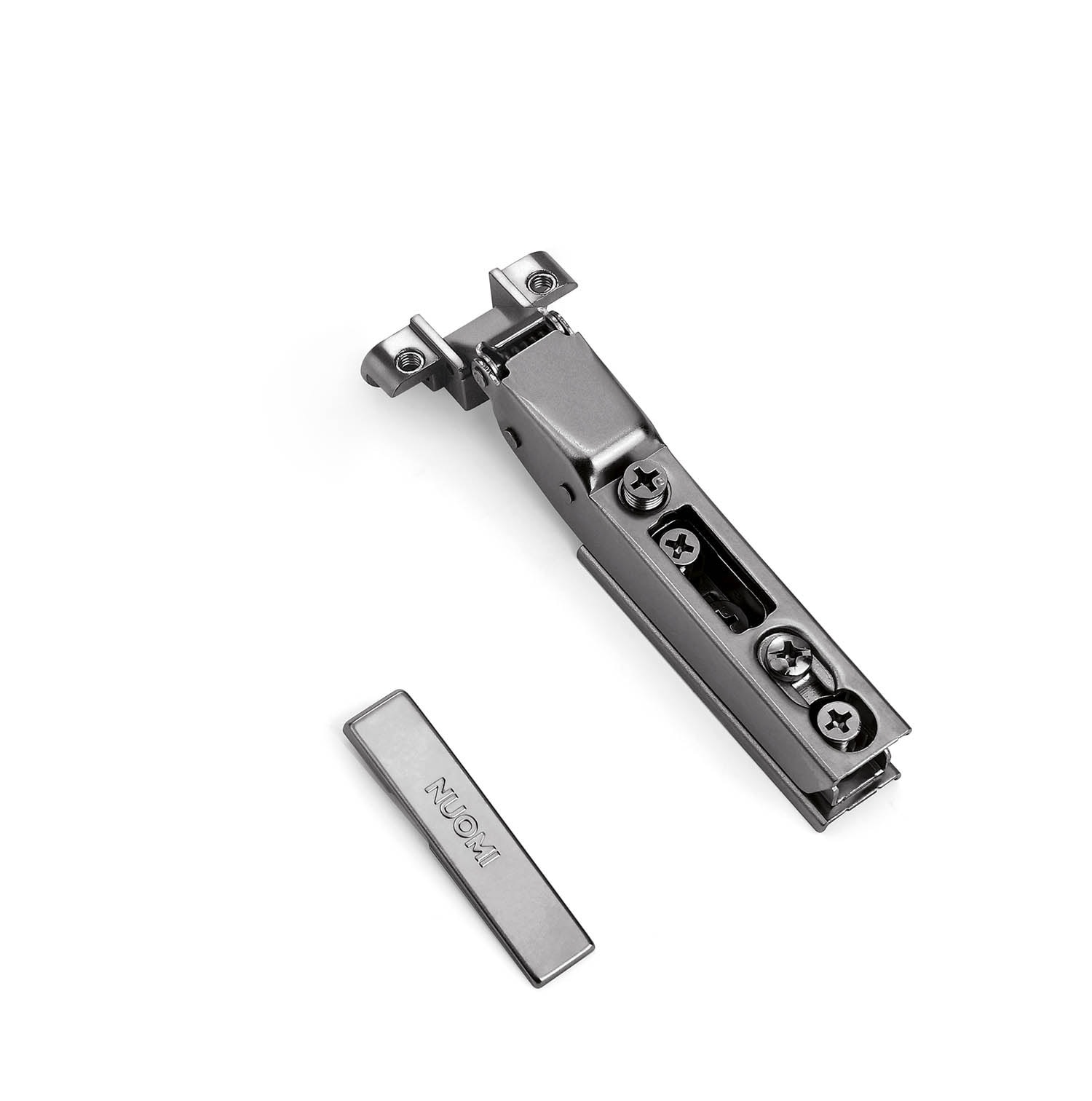

| Wingless Hinge For Aluminium-frame Door | 8152161 | Full Overlay | H=0, 2 Holes | 28mm | 100° | Titanium plated |
| 8152162 | Half Overlay | H=0, 2 Holes | 28mm | 100° | ||
| 8152163 | Inserted | H=0, 2 Holes | 28mm | 100° | ||
| Arm cover | 8152025A | / | / | / | / | Bordeaux red |
| 8152025B | / | / | / | / | Champagne gold | |
| 8152025C | / | / | / | / | Highclass grey |
