The NUOMI hinge perfectly integrates the powerful function with the exquisite design. No matter in the kitchen, bedroom, washroom or living room, you can have the perfect hinge experience in every household space. The lengthening cylinder adopts forging technology, the thickness of cyinder wall is symmetrical, and the oil quantity is more. Silent opening and closing, longer damping service life.
Germany exquisite craft, professional production level.
Professional testing, nano titanium hinge through the SGS168-hour salt spray test standard, super corrosion resistance.
Pass the European standard 50,000 opening and closing tests, quality certification, long service life.

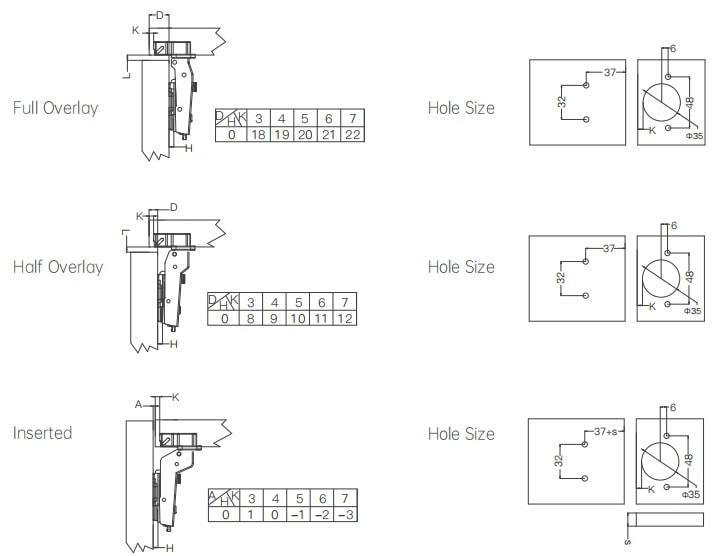

| Item No. | Overlay | Base Plate Height / Holes | Head Cup Size (Diameter × Depth) | Opening Angle | Surface Treatment | |
|---|---|---|---|---|---|---|
| Fast mounted | Fixed mounted | |||||
| 8022651 | 8022641 | Full Overlay | H=0, 4 Holes | φ35×12.5mm | 100° | Titanium plated |
| 8022652 | 8022642 | Half Overlay | H=0, 4 Holes | φ35×12.5mm | 100° | |
| 8022653 | 8022643 | Inserted | H=0, 4 Holes | φ35×12.5mm | 100° |
